รายละเอียดสินค้า:
|
| ประเภทสินค้า: | PP Making Machine Equipment | ประเภทการประมวลผล: | เครื่องอัด |
|---|---|---|---|
| วัตถุดิบ: | พีพี | การออกแบบสกรู: | สกรูเดี่ยวสกรูคู่เดี่ยวหรือคู่ |
| ใบสมัคร: | แผ่น, สายรัด, ท่อ, แถบบรรจุภัณฑ์, เทปและสายรัด | ระบบอัตโนมัติ: | อัตโนมัติ |
| ประเภทขับเคลื่อน: | ไฟฟ้า | แรงดันไฟฟ้า: | 220V-240V |
| การรับประกัน: | 1 ปี | มีบริการหลังการขาย: | มีวิศวกรพร้อมให้บริการเครื่องจักรในต่างประเทศ |

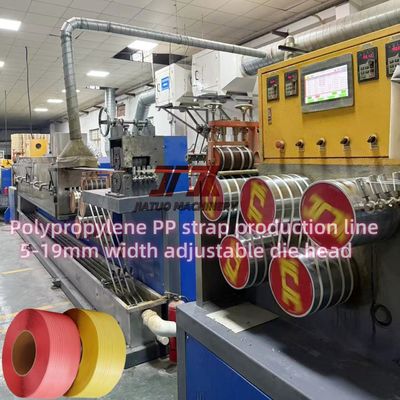

Carton Box Paper Packing USE PP Strap Production Line Making 5mm Packing Belt With 380kg/H
Description of PP strap making machine
With PP recycled material,virgn material, to produce various specifications of PP strap. It consists of drying system, extruder, screen changer, mould, oven, haul-off, and winder, etc.
Why choose us:
1. The final straps can be packed in all type of automatic machine and manual.
2. We major in PP PP Strap Production Line for nearly 30years
3. We have own PP PET strap factories for check and we are all very familiar with the production final straps ratios.
4. Can take customers to see the running machines
5. Can test the machine before shipping.
6. We provide all technical services. Feel free to contact us anytime with any questions.
Technical specification of PP 2straps output production line
|
1 |
Materials |
Polypropylene PP raw material pellets, recycled pellets. |
|
2 |
Product |
PP strap (1 mould for 2 straps) |
|
3 |
Capacity |
100-120kg/h |
|
4 |
Total install power |
80kw, (actual power consumption is 40-50%) |
|
5 |
Strap width |
5mm-19 mm |
|
6 |
Thickness |
0.4 mm-1.2 mm |
|
7 |
Manpower |
2person/shift |
|
8 |
Workshop required |
L (30m) ×W (2m) ×H (4m) |
|
9 |
Power source |
380V, 50Hz, 3Phase (according to customer requirement) |
|
10 |
Electric components |
Schneider |
|
11 |
Inverter |
INVT |
|
12 |
Switches |
Fotek |
|
13 |
Motor power |
GUGAO |
Parts of PP belt making Machine
Automatic screen changer
Lowers Operational Costs: Minimizes material waste and reduces labor requirements for manual screen changes and line restarts.
Enhances Process Stability: Protects downstream equipment by ensuring a clean and consistent melt flow, contributing to smoother long-term operation.

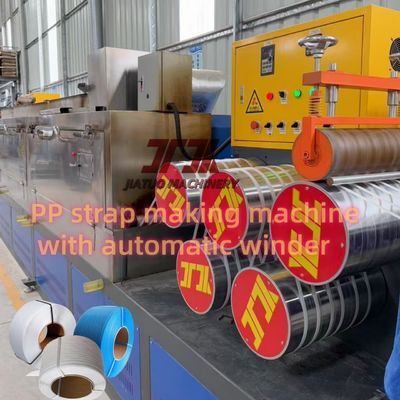

Semi-automatic winding machine
Neat winding
Improved production efficiency: Easily accommodates various roll sizes, packaging styles, and material types, making it ideal for small-batch or multi-variety production.
Easy operation
FAQ
1. For PP(polypropylene) strapping band extrusion line
* What about the output of PP strapping band extrusion line? 150kg/hr, 280kg/hr, 500kg/hr.
* What about the size of strap that the PP strap machine can make? Width: 5-25mm; Thickness: 0.35-1.0mm;
* What about the installation power of the PP strap machine? 135kw/155kw/195kw/439kw;
* What about the usage of PP strap? Packing boxes, money, paper;
* Will the strap be used for automatic strapping tool or manual tool? Both.
2. For PET(polyester) strapping band extrusion line
* What about the output of PET strapping band extrusion line? 200kg/hr, 400kg/hr, 600kg/hr, 800kg/hr.
* What about the size of strap that the PET strap machine can make? Width: 9-32mm; Thickness: 0.35-1.2mm;
* What about the camber of strap? <20mm/2m;
* What about the usage of PET strap? Packing cotton, aluminum, wood, brick, boxes;
* Will the strap be used for automatic strapping tool or manual tool? Both.
