รายละเอียดสินค้า:
|
| ชื่อ: | เครื่องทำเทปสัตว์เลี้ยง | ความกว้าง: | 9-32 มม. |
|---|---|---|---|
| ความหนา: | 0.6-1.2 มม. | วัตถุดิบ: | เกล็ดขวด PET |
| สกรูวัสดุ: | 38crmoala | ขนาดสกรู:: | 100*2800 มม |
| ความเร็วเส้น: | >100-200ม./นาที | วิธีการควบคุม: | บมจ |
| เครื่องห่อ: | อัตโนมัติ/กึ่งอัตโนมัติ | ตู้คอนเทนเนอร์: | 40HQ*3 ชิ้น |
| เน้น: | PLC control PET strap machine,9-32mm PET strapping band machine,green PET strap manufacturing equipment |
||

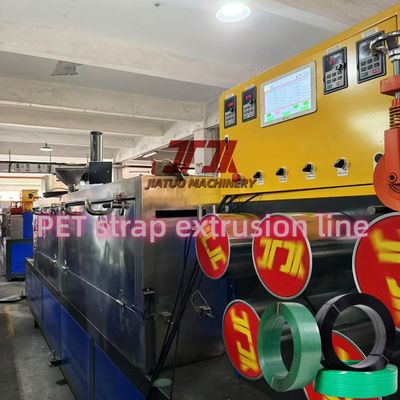

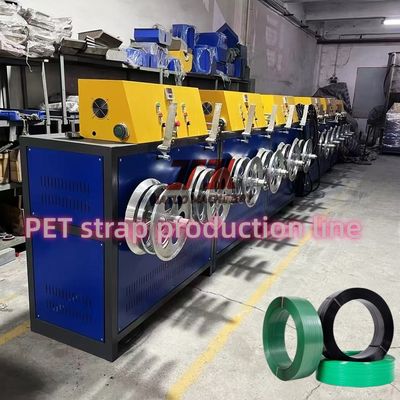

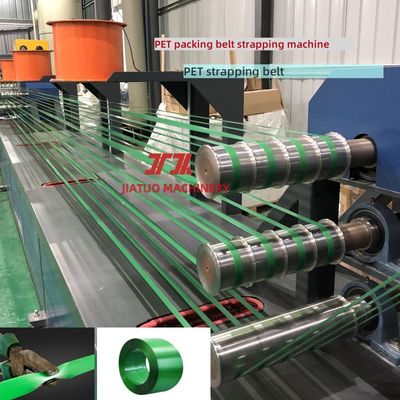

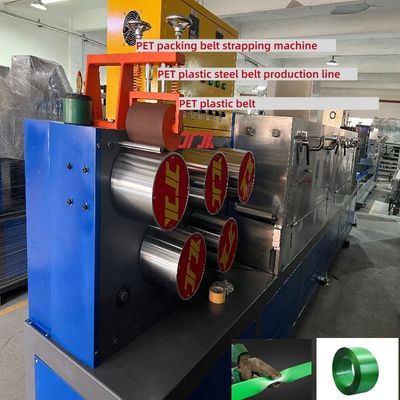

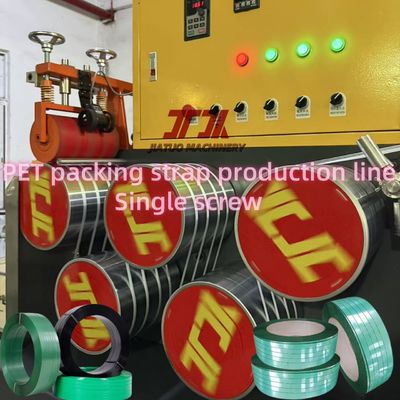

Green pet strapping band making machine 9-32mm pet strap manufacturing machine with PLC control system
DESCRIPTION OF PET STRAPPING BAND MAKINGE MACHINE
PET strapping band making machine
PET strap making machine/PET belt production line is an energy-saving and environmentally friendly plastic extruder that can produce PET belts with specifications of 9-32mm width and 0.6-1.2mm thickness.
Features :
1. Good tensile strength----PET strapping belt production line has the tensile strength of steel tape, good ductility, good impact resistance, not easy to break, and ensures the safety of product transportation.
2. Small elongation----Although PET strapping tape is a kind of plastic, its elongation changes very little, and its elongation is only 1/6 of polypropylene. It can maintain tension and make the expansion and contraction amount no longer change after packaging.
3. Strong temperature resistance----Experiments have proved that the melting point of PET strapping tape is about 260℃, and it can be used for a long time at 120℃ without deformation, and has good stability.
4. Good economic benefits----The density of PET strapping tape is 1.30~1.38g/cm3, which is only 1/6 of the density of steel tape (7.8g/cm3), equivalent to the length of 6-ton steel tape, and the price per unit length is relatively low.
PRODUCT DESCRIPTION
| Model | PET-2 | PET-3 | PET-4 | PET-6 | PET-8 |
| Raw materials | Bottle flakes/crushed materials | ||||
| Number of tapes | 2 | 3 | 4 | 6 | 8 |
| Width (mm) | 9-32 | ||||
| Thickness (mm) | 0.4-1.2 | ||||
| Maximum line speed(m/min) | ≧150 | ≧150 | ≧150 | ≧150 | ≧150 |
| Screw Model | 90 | 100 | 125 | 150 | 180 |
| Reducer model | 200 | 250 | 280 | 315 | 350 |
| Dehumidifier | 1000 | 1000 | 2000 | 3000 | 3500 |
| Metering Pumps | 100CC | ||||
| Production capacity /24 H | 5-6T | 7-8T | 10-12T | 12-15T | 18-20T |
PET strapping production line process flow
① Loading →② Mixing raw materials →③ Pre-drying raw materials →④ Vacuum dehumidification of raw materials →⑤ Melting and metering extrusion of raw materials →⑥ Cooling and forming of raw materials (with raw materials) →⑦ Preheating the oven →⑧ Primary stretching →⑨ Secondary stretching →⑩ Embossing →⑪ Oven tempering and shaping →⑫ Cooling →⑬ Finished product winding
Advantages of PET strapping:
Environmentally friendly – Steel strapping rusts when exposed to air, and rust is highly permeable to packaged goods. PET strapping is aesthetically pleasing and rust-free, eliminating unnecessary worries. It is also recyclable.
6. Good flexibility – Safe to handle: PET strapping lacks the sharp edges of steel strapping, preventing scratches on packaged goods and injuries to hands. No special tools are needed for cutting, and even when very tight, it will not cause hand injuries.
FAQ:
Q: What is the voltage of the PET plastic steel belt equipment?
A: 380V/50HZ, three-phase (customization supported)
Q: What is the extrusion capacity of the PET plastic steel belt equipment?
A: Different models have different extrusion capacities, with capacities ranging from 150-600KG/H
Q: What is the producible width of the PET plastic steel belt equipment?
A: 9-32mm
Q: Can the PET plastic steel belt equipment be customized?
A: Customization supported
Q: Where does the PET plastic steel belt equipment come from?
A: China.
Q: What are the certifications for the PET plastic steel belt equipment?
A: ISO CEO certification.
Q: What is the minimum order quantity for the PET plastic steel belt equipment?
A: 1 set
Q: What is the weight of the PET plastic steel belt equipment?
20T, 40GP container * 3PCS
PRODUCT DESCRIPTION
