PP strapping band making machine high speed pp strapping band making machine with PP/PET straps

PP strapping band making machine high speed pp strapping band making machine with PP/PET straps

DESCRIPTION OF PP STRAPPING EQUIPMENT

PP strapping equipment is an efficient and highly automated extrusion production equipment. The PP straps produced are widely used in many industries and have stable product quality and broad market prospects.

PP strapping equipment is used to produce PP strapping or use PP strapping for strapping. It can be divided into two categories: production equipment and strapping equipment:

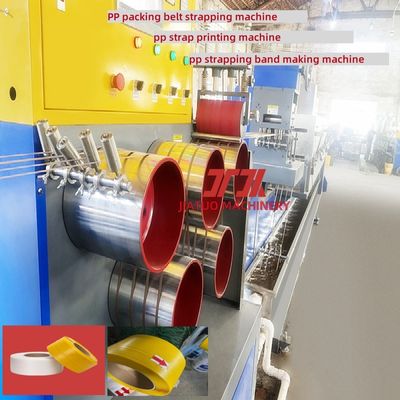

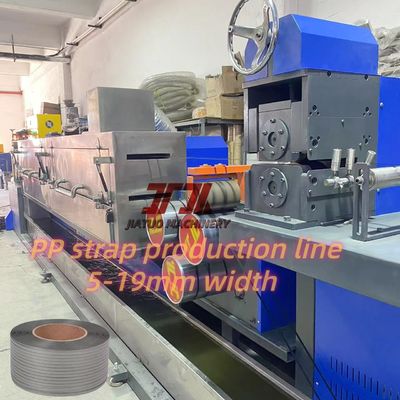

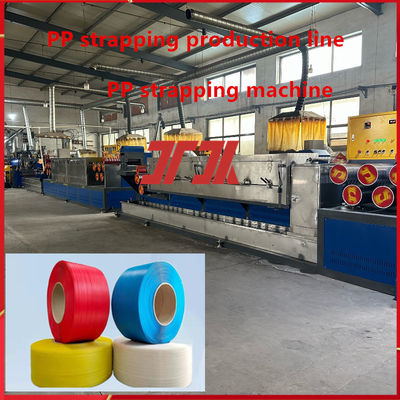

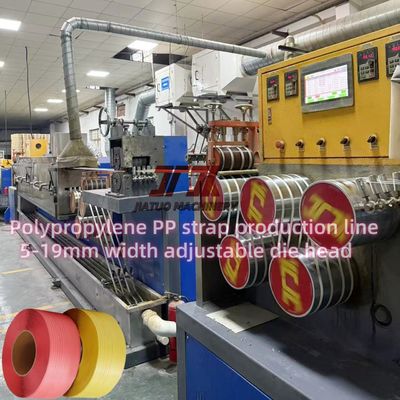

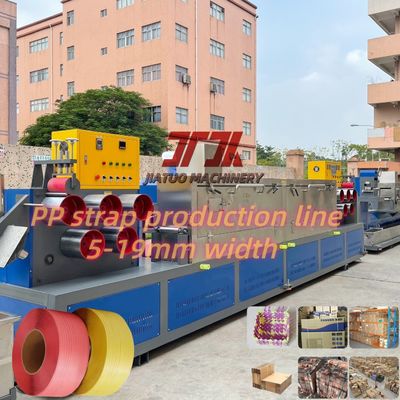

PP strapping production equipment:

Main components------

Usually composed of: screw feeder, extruder, cooling water tank, first tractor, stretching oven, embossing machine, shaping oven, flower collecting machine, etc.

Working principle-----

The raw material enters the strong extruder through the feeding system, and the PP strap embryo is pressed out from the die after heating and melting, and the cooling water tank quickly cools and shapes the embryo.

The first tractor transports the PP strap embryo to the stretching oven for heating and stretching, and the second tractor transports it to the embossing machine for embossing. The embossed strapping is eliminated from the internal stress by the shaping oven, and then cooled and shaped again by the shaping water tank, and finally transported to the coiler by the third tractor for winding, completing the production of PP strapping.



Technical Parameters of PP belt four output making machine

Feeding and Plasticizing Extrusion Section:

Polypropylene granules (virgin or recycled) and necessary masterbatches are fed into the extruder through the hopper.

Inside the extruder, the material is heated (electrically heated) and melted by the shearing action of the screw, becoming a homogeneous viscous fluid.

The molten PP material is pushed by the screw through a specially designed die head, and extruded into one or more continuous thin strips.

FINISHED PP STRAPPING BELT:

Features:

Good plasticity

Strong breaking force

Bending resistance

Low density

Widely used in many fields, including but not limited to logistics, packaging, transportation, electronic products, hardware, home appliances, clothing, etc.

FAQ

Q1:What about the payment terms?
A1:Always 30% down payment as deposit,70% balance pay before shipping.

Q2:What about the payment way?
A2:TT,L/C at sight or MIC trade assurance.

Q3:If you will send engineer coming to our factory to install and test the machines?
A3:Yes,Every set of machine we will send professional engineer to your factory and help installation and test the machines for you.

Q4:If you have CE,SGS,ISO certificate?
A4:Yes,except these,if you also need other certificates,we also can help to apply.
