รายละเอียดสินค้า:
|
| ประเภทผลิตภัณฑ์: | สายการผลิตทำสายรัด PET | วัตถุดิบ: | เกล็ด PET หรือวัสดุรีไซเคิล 100% |
|---|---|---|---|
| ความกว้างของสายรัด PET: | 9-32 มม. | ช่วงความหนาของ PET: | 0.6-12mm |
| ความจุ: | 350-600kg/h | เครื่องยนต์: | ซีเมนส์ |
| ประเภทขับเคลื่อน: | มีไฟฟ้า | แรงดันไฟฟ้า: | ตามโรงงานของลูกค้า |
| สีผลิตภัณฑ์: | สีเขียว/ชมพู/เหลือง/ดำ | การใช้งาน: | วัสดุที่บรรจุ |
| บริการหลังการขาย: | การสนับสนุนทางเทคนิควิดีโอการสนับสนุนออนไลน์ | การรับประกัน: | 1 ปี |
| เน้น: | high-speed PET strapping production line,PET strapping equipment 9-25 mm,PET strap making machine with warranty |
||
High-speed PET strapping production line 9-25mm PET strapping equipment PET strapping
PRODUCT DESCRIPTION OF PET PLASTIC STEEL BELT PRODUCTION EQUIPMENT
PET plastic steel belt production equipment
PET packing strap, also known as PET plastic belt, is a world widely used new type package material substitute for steel belt. With years development on it and decrease on cost, it is now widely used in steel industry, chemical fiber industry, Aluminum industry, paper industry, Brick ceramics, Screw industry, tobacco industry, electric industry, textile industry and wood industry. It is most widely used steel belt substitute with high strength.
1. Efficient and Automated Production

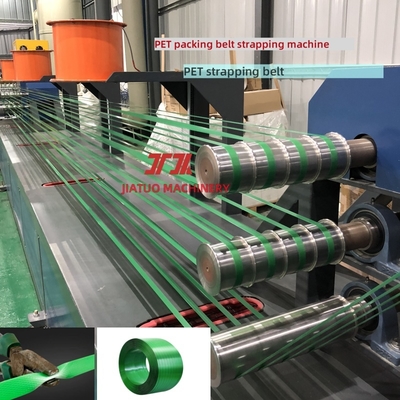

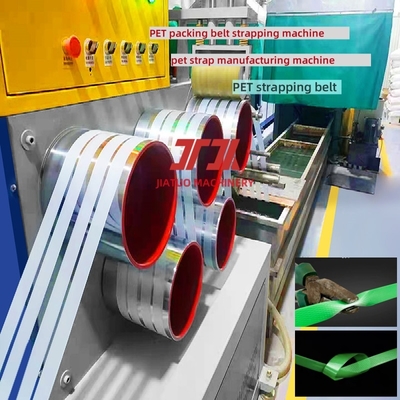

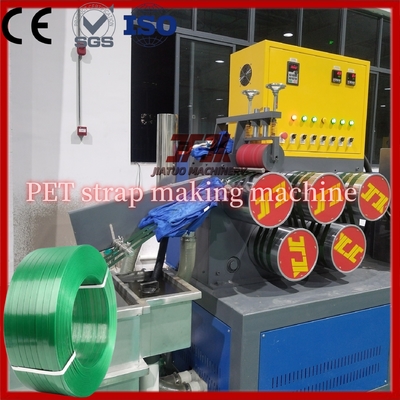

Continuous Production------ PET equipment utilizes an integrated process for extrusion, cooling, stretching, shaping, and winding, resulting in a high degree of automation and high production efficiency, making it suitable for large-scale production.
Intelligent Control------- A PLC (Programmable Logic Controller) and touchscreen human-machine interface enable precise control of parameters (such as temperature, tension, and speed), minimizing manual intervention.
Quick Mold Change-------- Some equipment supports quick mold changes, enabling flexible production of plastic strapping in various widths (e.g., 9mm--25mm) and thicknesses. This is convenient and hassle-free.
PET Strap Production Line Machine List
| NO. | Item | Specification |
| 1 | Power | According to customer's factory voltage |
| 2 | Material | PET raw material or 100% PET bottle flakes recycled |
| 3 | Capacity |
PETJT90:200kg/h PETJT100:250kg/h PETJT125:350kg/h |
| 4 | Product size |
Width:9-32mm Thickness:0.6-12mm |
| 6 | Mid-height of extruder | 7000mm |
| 7 | Installation power |
PETJT90:200KW PETJT100:250KW PETJT125:300KW |
| 8 | Humidity | <85% |
| 9 | Temperature | 0-40 degree |
| 10 | Cooling tower capacity | 30T/H or 50T/H |
| 11 | Installation Dimensions |
PETJT90:45*2.0*7.0M PETJT100:45*2.0*7.0M PETJT125:60*3.0*8.0M |
| 12 | Product color | Green/Black/Pink/Yellow |
| 13 | Factory dimension |
35m*(3~6)m*(4~6)m 45m*(3~6)m*(4~6)m If your factory not big enough,please contact with us,our engineer can according to your size to design |
Raw Materials--------
100% PET flakes or shredded material
Features of Plastic Strapping
(1) high tensile strength, both strip-like tensile strength, but also can impact scalability, better ensure transportation safety products.
(2) Small elongation, elongation rate is one-sixth of polypropylene tape, can long maintain the tension.
(3) temperature resistance, melting point of 260 degrees, 120 degrees below the use of deformation.
(4) safety, without risk of pollution rusty steel tied objects, bright colors to be learned.
(5) economic good, one ton PET packaging belt length equivalent to 6 tons with the specifications of the strip length, unit price per meter more than 40% lower than steel, to reduce packaging costs.
FAQ:
Q: What is the voltage of the PET plastic steel belt equipment?
A: 380V/50HZ, three-phase (customization supported)
Q: What is the extrusion capacity of the PET plastic steel belt equipment?
A: Different models have different extrusion capacities, with capacities ranging from 150-600KG/H
Q: What is the producible width of the PET plastic steel belt equipment?
A: 9-32mm
Q: Can the PET plastic steel belt equipment be customized?
A: Customization supported
Q: Where does the PET plastic steel belt equipment come from?
A: China.
Q: What are the certifications for the PET plastic steel belt equipment?
A: ISO CEO certification.
Q: What is the minimum order quantity for the PET plastic steel belt equipment?
A: 1 set
Q: What is the weight of the PET plastic steel belt equipment?
20T, 40GP container * 3PCS
